TD CoPilot

The TD CoPilot software can be used to calibrate the eye tracker, define the settings for calibration, check the battery life of the TD Pilot Base etc.

To access the TD CoPilot follow this procedure:

Select the TD CoPilot app, .
The TD CoPilot opens.

Calibration

The eye tracker in the TD Pilot can be calibrated here.

Start Calibration

Open the TD CoPilot app.
Make sure the user is correctly positioned in front of the TD Pilot device.
For more information about positioning, see Positioning and Track Status.
Select the Calibrate button.
Follow the on-screen instructions.

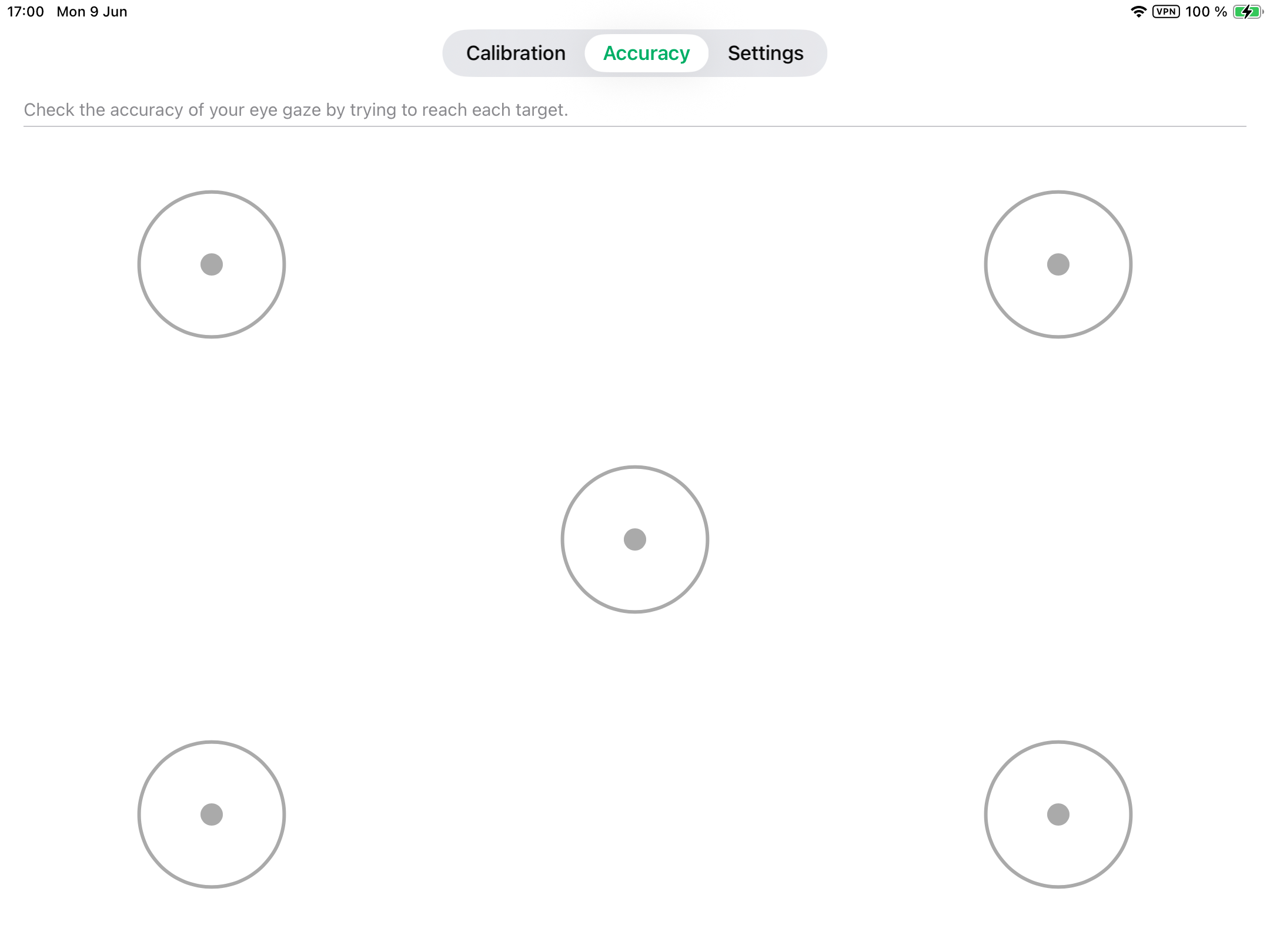

Accuracy

On the Accuracy page the calibration can be tested, using pre-defined targets on the screen to see if the user needs to re-calibrate the Eye tracker.

Look at each dot in each circle on the screen to see how accurate the eye tracking is in that area.

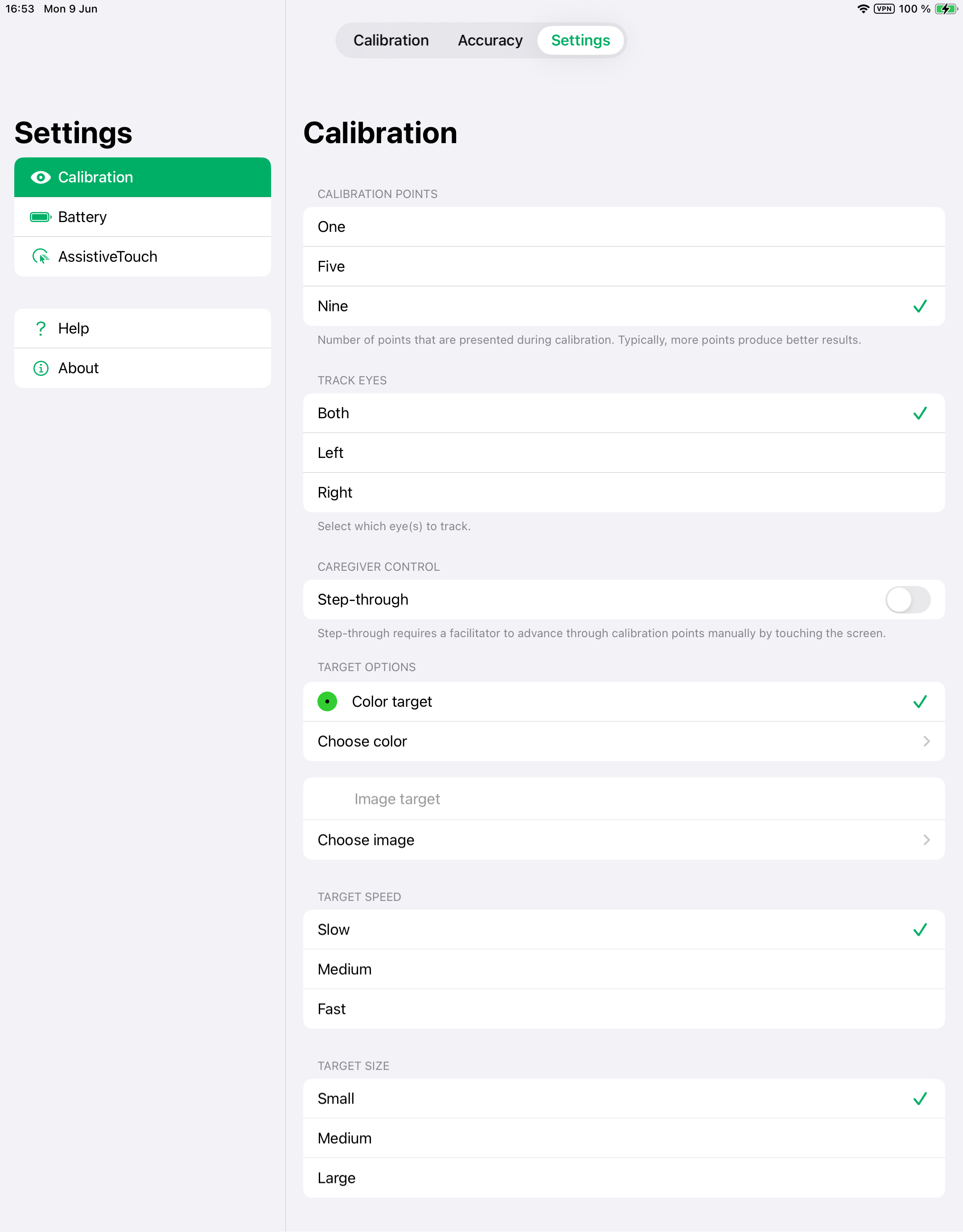

Settings

Calibration

CALIBRATION POINTS

Select how many targets will be used to calibrate the eye tracker. The more calibration points used, the better calibration result will be:

Open the TD CoPilot app.
Select Settings button.
Select the CALIBRATION POINTS:

One
Five
Nine (Default)

TRACK EYES

Select which eye(s) the eye tracker should track when using Eye tracking:

Open the TD CoPilot app.
Select Settings button.
Select the TRACK EYES - SELECT WHICH EYE(S) TO TRACK:

Both — The eye tracker will track both of the eyes (will get the best performance) (Default)
Left — The eye tracker will only track the left eye.
Right — The eye tracker will only track the right eye.

CAREGIVER CONTROL

Open the TD CoPilot app.
Select Settings button.
Select the CAREGIVER CONTROL:

Step-Through — Toggle Step-Though On to use step-trough calibration function.
Step-through allows a facilitator to advance through calibration points manually by touching the screen. (Default is Off)

TARGET OPTIONS

There are 2 different target options:

Color Target
Image Target

Select the color of for the color targets.

Open the TD CoPilot app.
Select Settings button.
Select the Choose color button.
Select the color.

Select the image for the Image targets

Open the TD CoPilot app.
Select Settings button.
Select the Choose image button.
Select the image from your photos.

TARGET SPEED

Select which speed the targets should move across the screen during calibration.

Open the TD CoPilot app.
Select Settings button.
Select the TARGET SPEED:

Slow (Default)
Medium
Fast

TARGET SIZE

Select the size for the targets when they move across the screen during calibration.

Open the TD CoPilot app.
Select Settings button.
Select the TARGET SIZE:

Small (Default)
Medium
Large

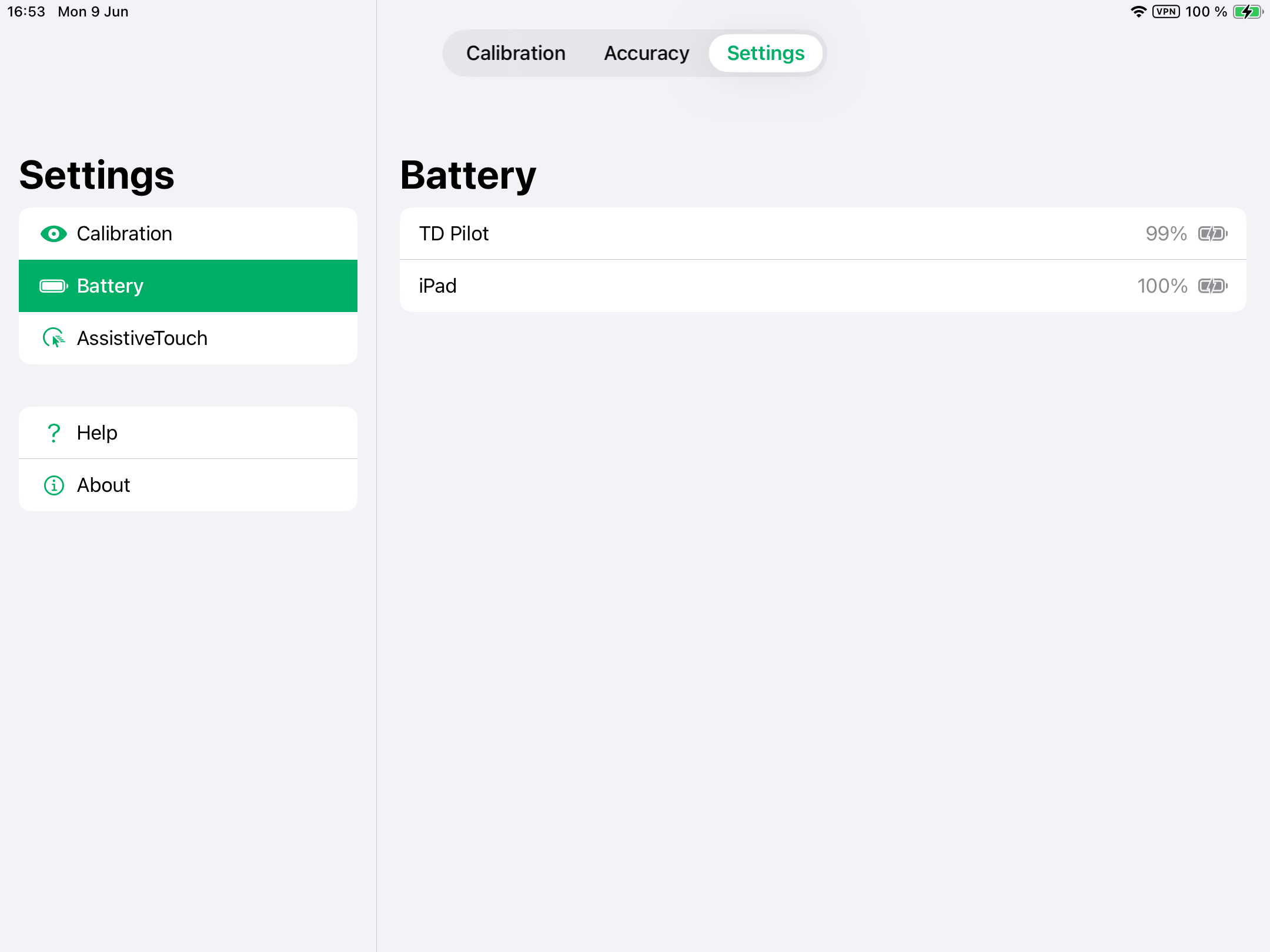

Battery

To see the status of the TD Pilot battery:

Open the TD CoPilot app.
Select Settings.
Select Battery

Explanations of symbols:

Battery icon = Running on battery
Battery icon with lightning bolt = Charging
Disconnected = TD Pilot powered off or USB cable disconnected

The iPad's battery may be seen at the top right of the iPad (or in a Widget) as well.

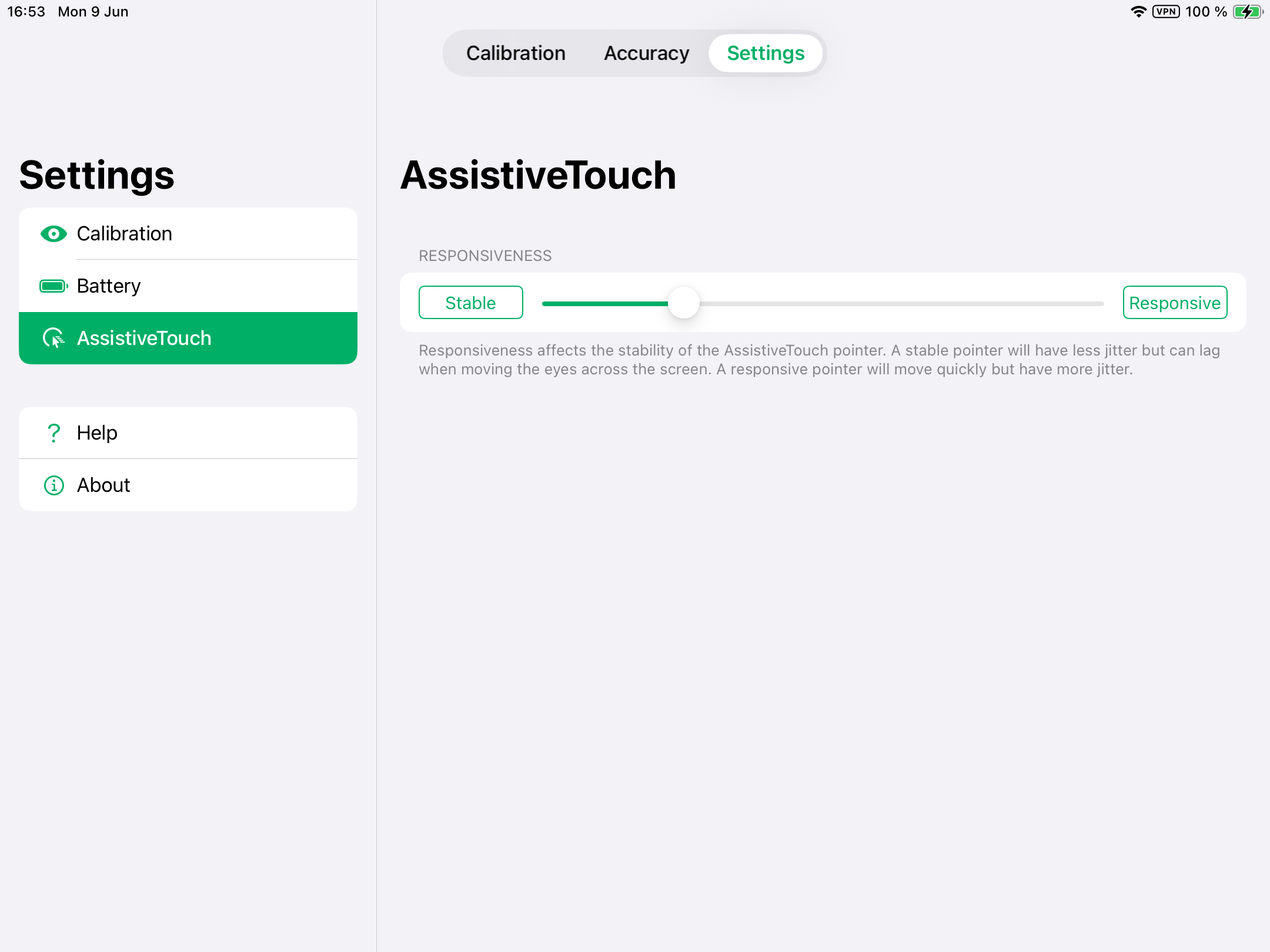

Assistive Touch

RESPONSIVENESS

Responsiveness affects the stability of the AssistiveTouch pointer.. A stable pointer will have less jitter but can lag when moving the eyes across the screen. A responsive pointer will move quickly but have more jitter.

Open the TD CoPilot app.
Select Settings.
Select Assistive Touch
Select the Stable or Responsive buttons to set the RESPONSIVENESS level between Stable and Responsive.

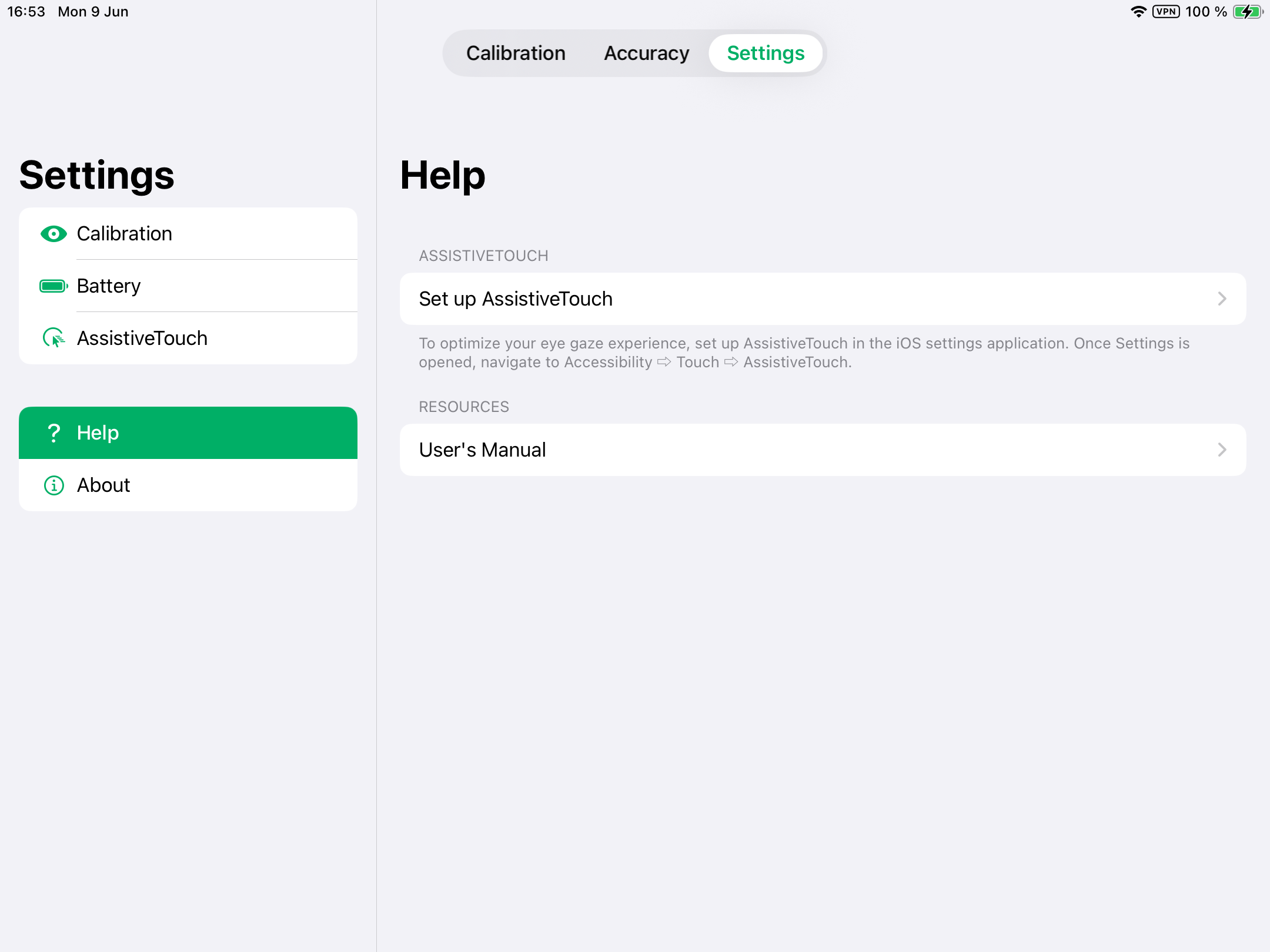

Help

This page provides information about where to go to optimize the eye gaze experience and where to find the User’s Manual.

ASSISTIVETOUCH

Select the Set up AssistiveTouch button to go to the iPadOS settings.

RESOURCES

Select the User’s Manual button to open the User’s Manual as a PDF on the iPadOS device.

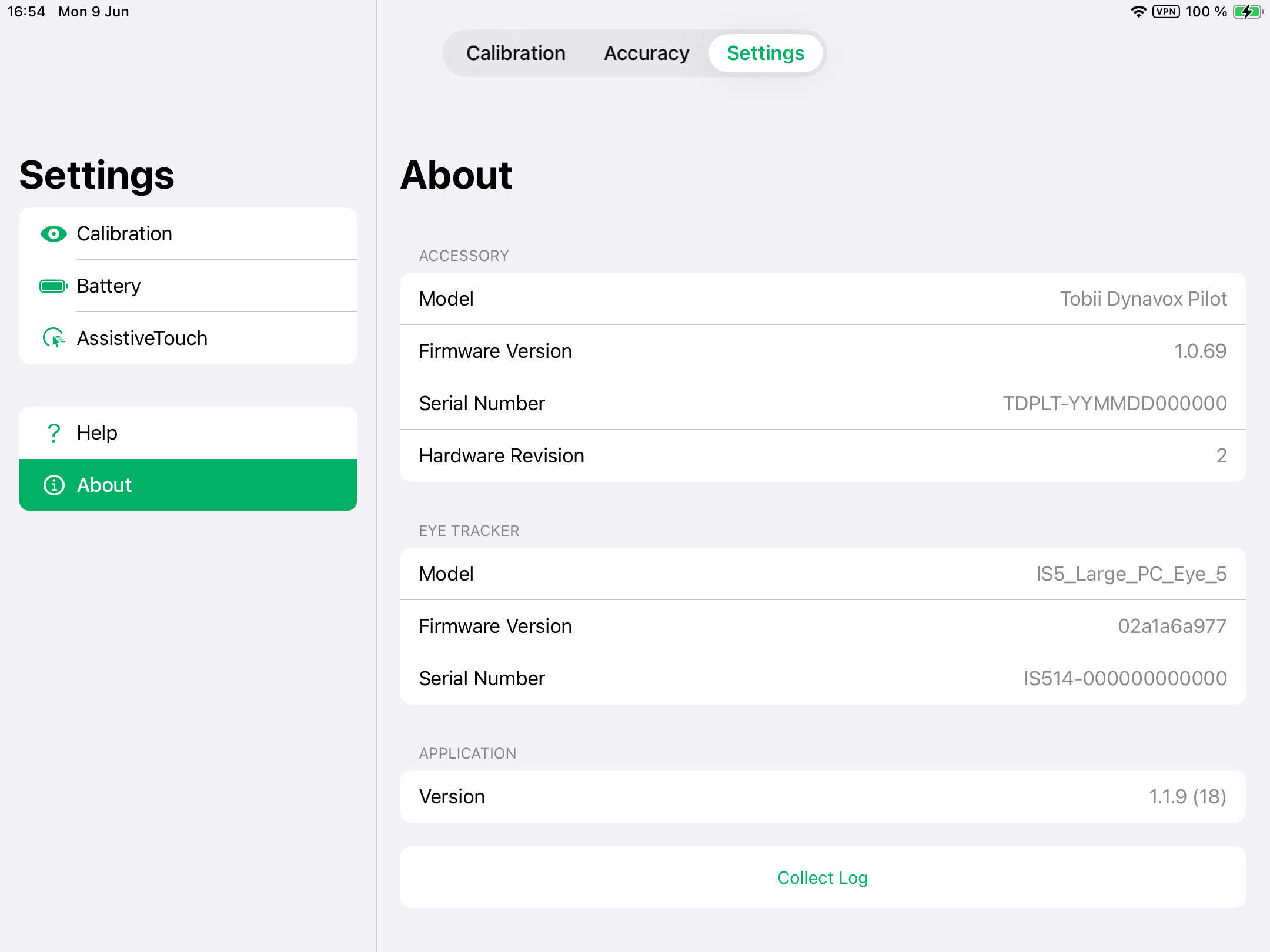

About

To get detailed information about the TD Pilot and eye tracker:

Open the TD CoPilot app.
Select Settings.
Select About.

To collect the logs for the TD Pilot and eye tracker:

Open the TD CoPilot app.
Select Settings.
Select About.
Select the Collect Logs button.
